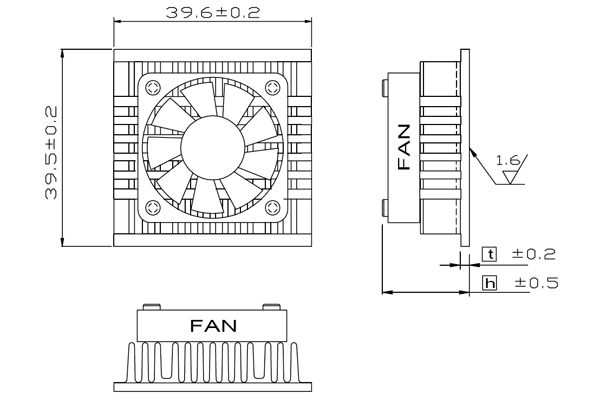

:: EXF40 :: Dimension

Model No.	Height (mm)	Thickness (mm)	Weight (grams)	Rth ( ^oC/W )	CAD	Attachment
EXF40-16	16.7	1.7	26.0	1.79	By request	Clip , Tape

Dimensions: mm Material : AL6063 Finish :black anodize

:: Fan ::

Dimension	Bearing	Voltage (VDC)	Speed (RPM)	Air Flow (CFM)	Noise (dBA)
EXF40-16	Vapo	5	9500	4.9	28

Remarks:
1) Standard wire length 300mm.
2) Connector Molex 2695-3P or equivalent
