:: MW 9979 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MW 9979-60 99 x 79 60  540 By request


MW9979

Home » Passive Heat Sink » MW Series » MW9979 – Malico Inc.

Material
: Aluminum 6063 with Copper
Finish
: Nature anodize
Remarks
:

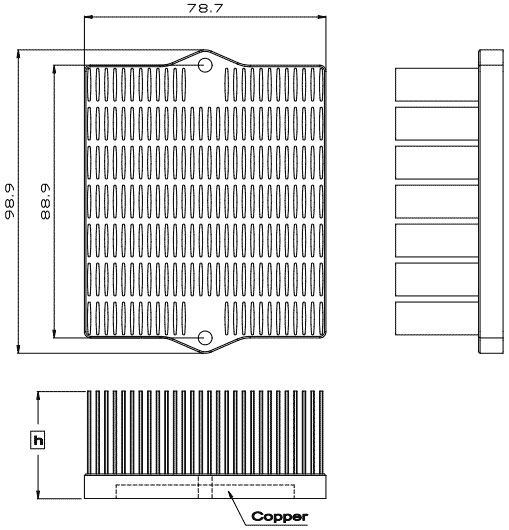

Model number MW9979-60 indicate 99x79mm is package footprint and 60 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

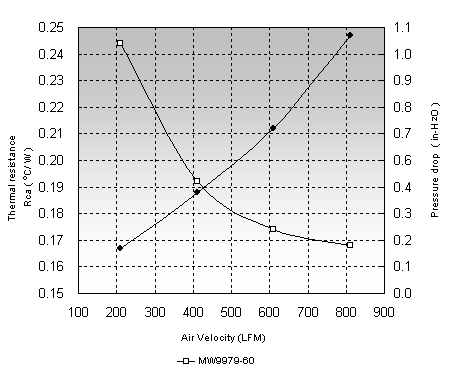

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MW 9979-60  0.24 0.19 0.17
