:: MW33 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MW 33-12 33 x 33 11.6 10.8 By request
MW 33-15 33 x 33 14.6 11.9 By request
MW 33-18 33 x 33 17.6 13.1 By request
MW 33-21 33 x 33 20.6 14.3 By request
MW 33-23 33 x 33 22.6 15.0 By request
MW 33-28 33 x 33 27.6 17.0 By request
MW 33-33 33 x 33 32.6 18.9 By request


Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:

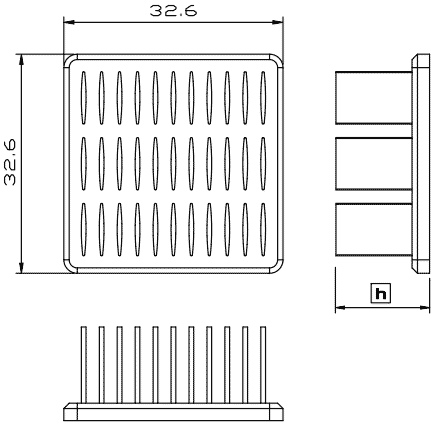

Model number MW33-12 indicate 33x33mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

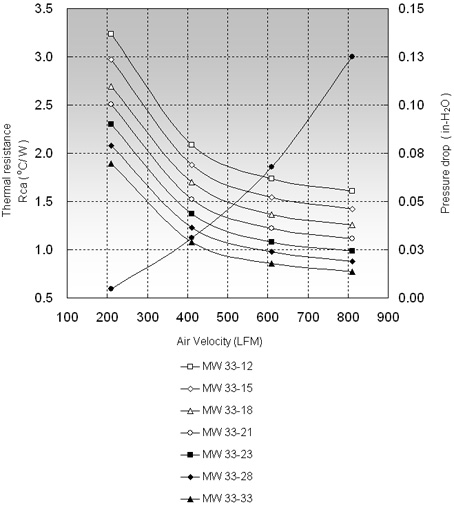

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MW 33-12 3.23 2.09 1.73
MW 33-15 2.97 1.88 1.54
MW 33-18 2.69 1.70 1.37
MW 33-21 2.50 1.52 1.22
MW 33-23 2.30 1.37 1.08
MW 33-28 2.08 1.23 0.98
MW 33-33 1.89 1.08 0.86
