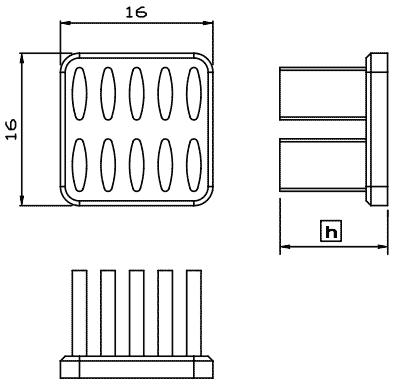

:: MW16 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MW 16-11 16 x 16 11.3 2.7 By request MW 16-14 16 x 16 14.3 3.2 By request MW 16-17 16 x 16 17.3 3.7 By request MW 16-20 16 x 16 20.3 4.3 By request MW 16-22 16 x 16 22.3 4.6 By request MW 16-27 16 x 16 27.3 5.5 By request MW 16-32 16 x 16 32.3 6.4 By request

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MW16-11 indicate 16x16mm is package footprint and 11 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

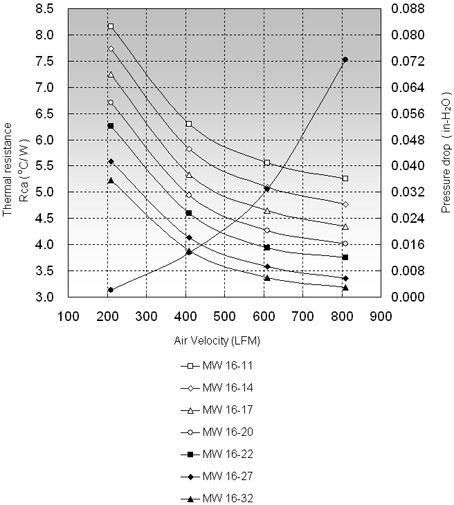

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MW 16-11 8.16 6.30 5.57 MW 16-14 7.73 5.82 5.09 MW 16-17 7.25 5.34 4.65 MW 16-20 6.70 4.94 4.27 MW 16-22 6.26 4.59 3.94 MW 16-27 5.58 4.13 3.58 MW 16-32 5.23 3.89 3.37
