:: MP 5837 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MP 5837-10 58 x 37  10 20  By request
MP 5837-20 58 x 37  20  26  By request
MP 5837-25 58 x 37  25  29  By request

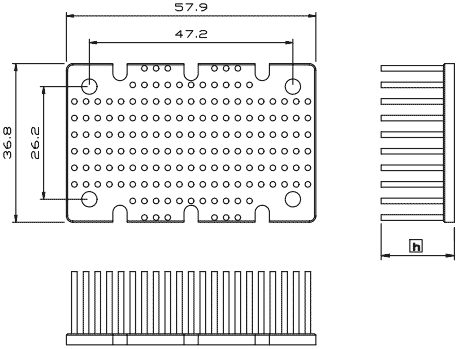

mp5837
Material
: Aluminum 6063
Finish
: Black anodize
Remarks
: Model number MP5837-10 indicate 58x37mm is package footprint and 10 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension
:: Rth ( oC/W ) ::
MP5837
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MP 5837-10  1.26 0.92  0.73
MP 5837-20  1.11  0.78  0.62
MP 5837-25 0.96  0.68  0.55
