:: MP 50 :: Dimension

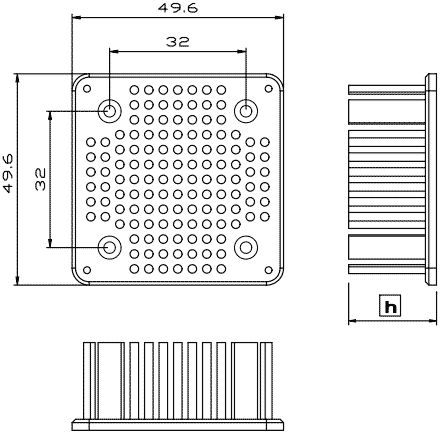

Model No. L x W (mm) Height (mm) Weight (grams) CAD MP 50-12 50 x 50 11.6 28.5 By request MP 50-15  50 x 50 14.6  32.0 By request MP 50-18  50 x 50 17.6  36.0 By request MP 50-21  50 x 50 20.6  40.0 By request MP 50-23  50 x 50 22.6 42.5 By request MP 50-28  50 x 50 27.6 49.0 By request MP 50-33  50 x 50 32.6 55.0 By request

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MP50-12 indicate 50x50mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

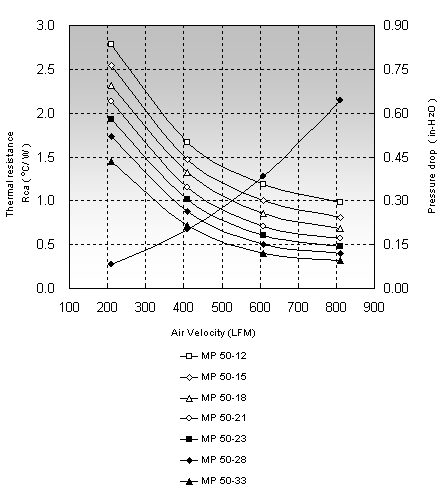

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MP 50-12 2.78  1.66 1.19 MP 50-15 2.54 1.47 1.00 MP 50-18 2.32 1.32  0.86 MP 50-21  2.14 1.15 0.71 MP 50-23 1.93 1.02 0.61 MP 50-28 1.73 0.88 0.50 MP 50-33 1.44 0.72  0.40
