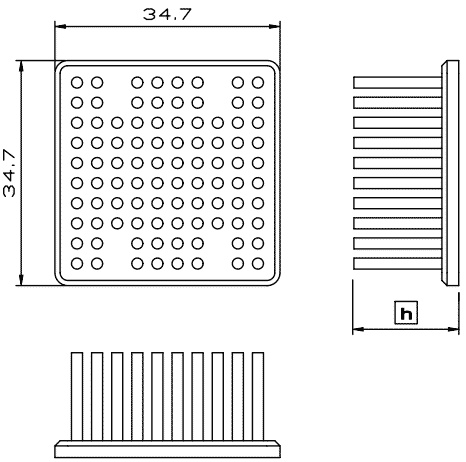

:: MP35 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MP 35-12 35 x 35 11.6 13.7 By request
MP 35-15 35 x 35 14.6 15.4 By request
MP 35-18 35 x 35 17.6 17.1 By request
MP 35-21 35 x 35 20.6 18.8 By request
MP 35-23 35 x 35 22.6 20.0 By request
MP 35-28 35 x 35 27.6 22.9 By request
MP 35-33 35 x 35 32.6 25.7 By request




Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:
Model number MP35-12 indicate 35x35mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

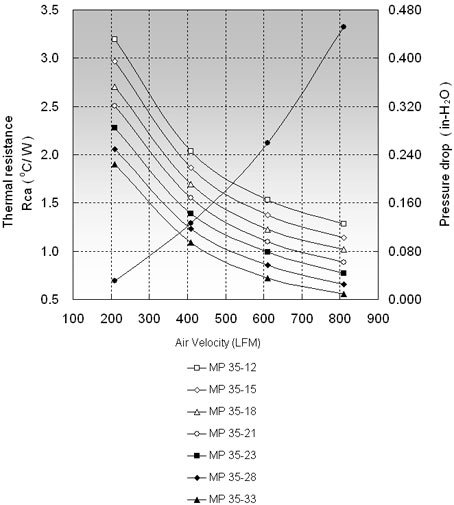

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MP 35-12 3.19 2.04 1.53
MP 35-15 2.97 1.87 1.37
MP 35-18 2.70 1.69 1.22
MP 35-21 2.51 1.55 1.10
MP 35-23 2.28 1.39 0.99
MP 35-28 2.06 1.23 0.85
MP 35-33 1.90 1.09 0.72
