:: MP17 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MP 17-11 17 x 17 10.7 2.9 By request MP 17-14 17 x 17 13.7 3.4 By request MP 17-17 17 x 17 16.7 4.0 By request MP 17-20 17 x 17 19.7 4.5 By request MP 17-22 17 x 17 21.7 4.8 By request MP 17-27 17 x 17 26.7 5.7 By request MP 17-32 17 x 17 31.7 6.6 By request

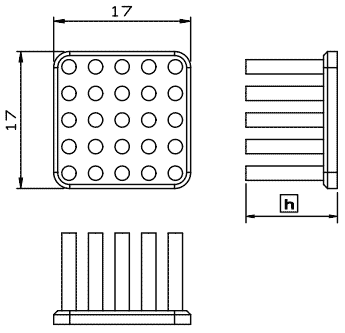

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MP17-11 indicate 17x17mm is package footprint and 11 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

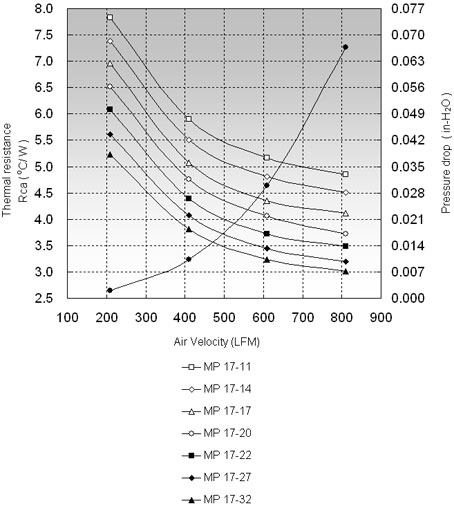

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MP 17-11 7.82 5.90 5.17 MP 17-14 7.38 5.51 4.82 MP 17-17 6.96 5.07 4.36 MP 17-20 6.51 4.75 4.06 MP 17-22 6.08 4.39 3.72 MP 17-27 5.61 4.07 3.44 MP 17-32 5.23 3.81 3.24
