:: MPC42.5 :: Dimension

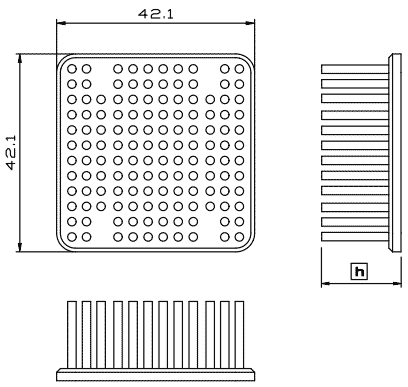

Model No. L x W (mm) Height (mm) Weight (grams) CAD MPC 42.5-12 42.5 x 42.5 11.6 68.8 By request MPC 42.5-15 42.5 x 42.5 14.6 78.0 By request MPC 42.5-18 42.5 x 42.5 17.6 87.3 By request MPC 42.5-21 42.5 x 42.5 20.6 96.5 By request MPC 42.5-23 42.5 x 42.5 22.6 102.7 By request MPC 42.5-28 42.5 x 42.5 27.6 118.1 By request MPC 42.5-33 42.5 x 42.5 32.6 133.5 By request

Material : Copper 1100 Finish : Anti-Oxidation Remarks : Model number MPC42.5-12 indicate 42.5×42.5mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

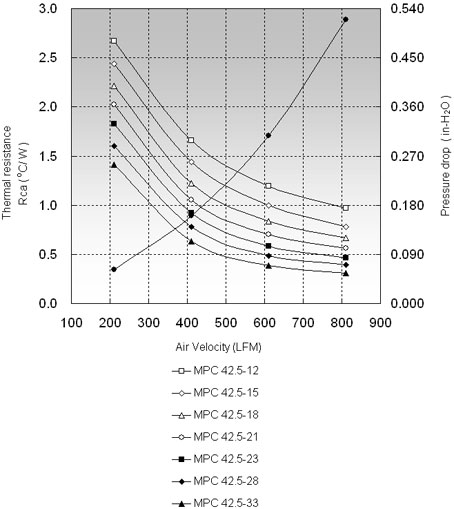

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MPC 42.5-12 2.67 1.66 1.19 MPC 42.5-15 2.44 1.44 1.00 MPC 42.5-18 2.21 1.23 0.84 MPC 42.5-20 2.02 1.06 0.71 MPC 42.5-23 1.82 0.92 0.59 MPC 42.5-28 0.60 0.78 0.49 MPC 42.5-33 1.42 0.63 0.39
