:: MPC40 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MPC 40-12 40 x 40 11.6 59.4 By request
MPC 40-15 40 x 40 14.6 67.0 By request
MPC 40-18 40 x 40 17.6 74.7 By request
MPC 40-21 40 x 40 20.6 82.4 By request
MPC 40-23 40 x 40 22.6 87.5 By request
MPC 40-28 40 x 40 27.6 100.4 By request
MPC 40-33 40 x 40 32.6 113.2 By request


Material
: Copper 1100
Finish
: Anti-Oxidation
Remarks
:

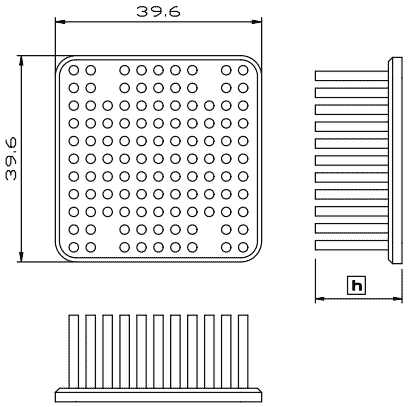

Model number MPC40-12 indicate 40x40mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

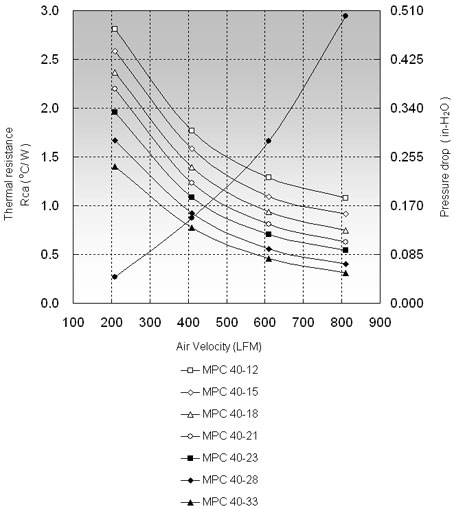

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MPC 40-12 2.81 1.77 1.29
MPC 40-15 2.59 1.59 1.09
MPC 40-18 2.39 1.39 0.93
MPC 40-21 2.20 1.23 0.81
MPC 40-23 1.96 1.09 0.70
MPC 40-28 1.67 0.92 0.56
MPC 40-33 1.40 0.78 0.46
