:: MPC21 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MPC 21-12 21 x 21 11.6 14.9 By request
MPC 21-15 21 x 21 14.6 16.6 By request
MPC 21-18 21 x 21 17.6 18.3 By request
MPC 21-21 21 x 21 20.6 20.0 By request
MPC 21-23 21 x 21 22.6 21.1 By request
MPC 21-28 21 x 21 27.6 24.0 By request
MPC 21-33 21 x 21 32.6 26.8 By request


Material
: Copper 1100
Finish
: Anti-Oxidation
Remarks
:

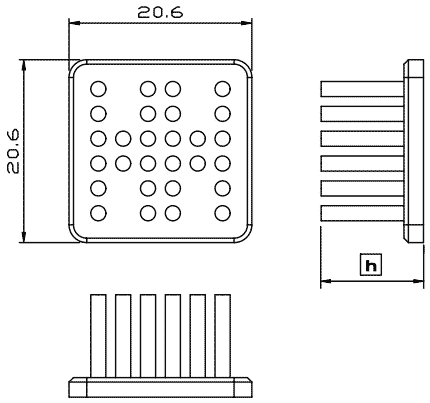

Model number MPC21-12 indicate 21x21mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

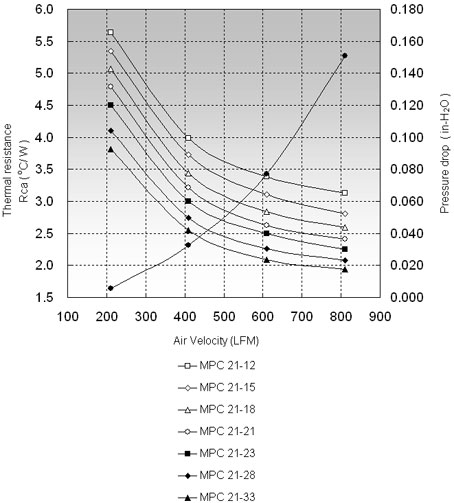

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MPC 21-12 5.63 3.98 3.38
MPC 21-15 5.35 3.73 3.11
MPC 21-18 5.07 3.44 2.84
MPC 21-21 4.79 3.22 2.63
MPC 21-23 4.50 3.00 2.50
MPC 21-28 4.11 2.74 2.26
MPC 21-33 3.81 2.55 2.09
