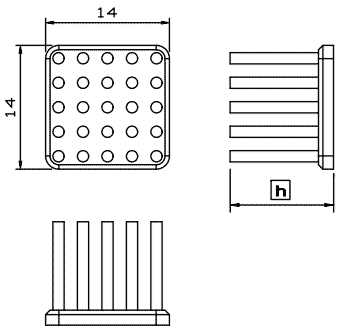

:: MPC14 :: Dimension

Model No. L x W (mm) Height(mm) Weight(grams) CAD MPC 14-11 14 x 14 10.7 5.6 By request MPC 14-14 14 x 14 13.7 6.5 By request MPC 14-17 14 x 14 16.7 7.4 By request MPC 14-20 14 x 14 19.7 8.3 By request MPC 14-22 14 x 14 21.7 8.9 By request

Material : Copper 1100 Finish : Anti-Oxidation Remarks : Model number MPC14-11 indicate 14x14mm is package footprint and 11 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

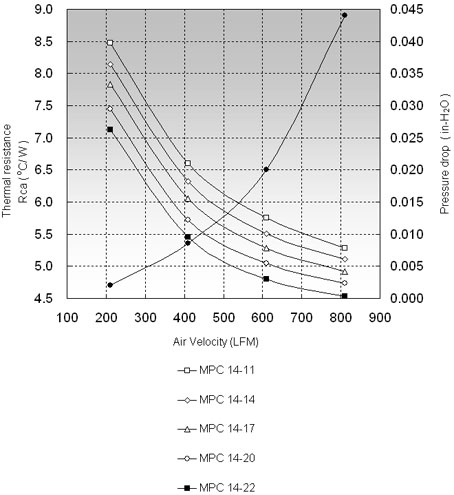

:: Rth ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MPC 14-11 8.48 6.60 5.75 MPC 14-14 8.14 6.32 5.51 MPC 14-17 7.83 6.05 5.28 MPC 14-20 7.45 5.72 5.05 MPC 14-22 7.12 5.45 4.80 Rth (oC/W)
