:: MPC11761 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MPC 11761-10 117 x 61  10  216.00 By request
MPC 11761-20 117 x 61  20  296.00 By request
MPC 11761-25 117 x 61  25  335.00 By request
MPC11761


Material
: Copper 1100
Finish
: Anti-Oxidation
Remarks
:

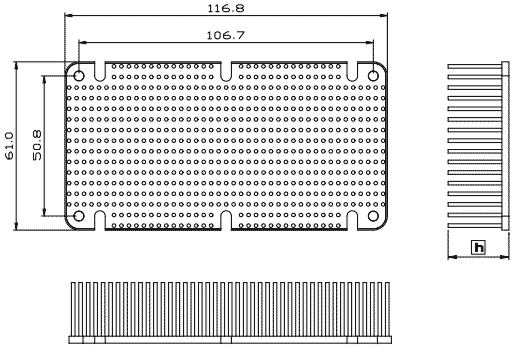

Model number MPC11761-10 indicate 117x61mm is package footprint and 10 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

:: Rth ( oC/W ) ::
MPC11761 p1
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MPC 11761-10 0.63 0.42 0.31
MPC 11761-20 0.55  0.34 0.26
MPC 11761-25 0.47 0.29 0.22
