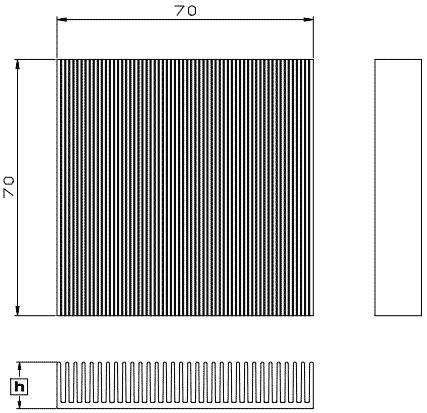

:: H :: Dimension

Model No. Height (mm) Height (mm) Weight (grams) CAD H 70-06 70 x 70 6.3 47.2 By request H 70-10 70 x 70 9.5 64.7 By request H 70-13 70 x 70 12.7 82.2 By request

Material : Aluminum 6063 Finish : Black anodize Remarks: : Model number H70-06 indicate 70x70mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

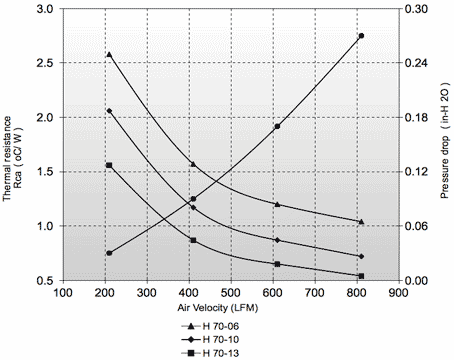

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) H 70-06 2.58 1.57 1.20 H 70-10 2.06 1.17 0.87 H 70-13 1.56 0.87 0.65
