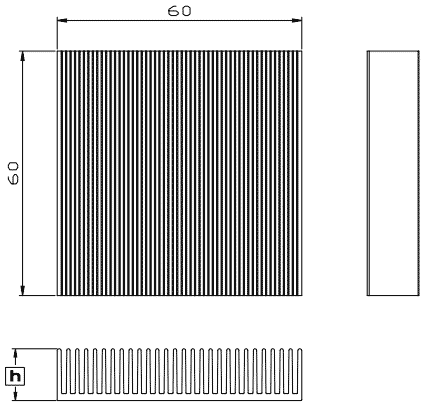

:: H :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD H 60-06 6.3 1.7 35.1 By request H 60-10 9.5 1.7 48.2 By request H 60-13 12.7 1.7 61.3 By request

Material : Aluminum 6063 Finish : Black anodize Remarks: : Model number H60-06 indicate 60x60mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

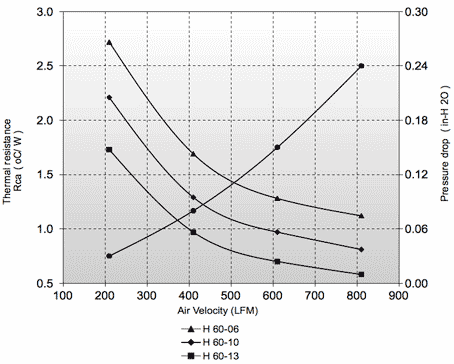

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) H 60-06 2.72 1.69 1.28 H 60-10 2.21 1.29 0.97 H 60-13 1.73 0.97 0.70
