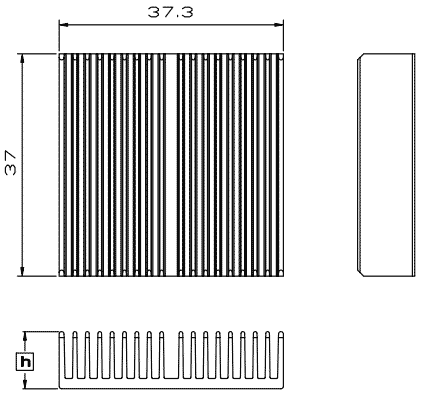

:: H :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
H 37.5-06 37.5 x 37.5 6.3 11.7 By request
H 37.5-10 37.5 x 37.5 9.5 15.4 By request
H 37.5-13 37.5 x 37.5 12.7 19.0 By request


Material
: Aluminum 6063
Finish
: Black anodize
Remarks:
:
Model number H37.5-06 indicate
37.5x37.5mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

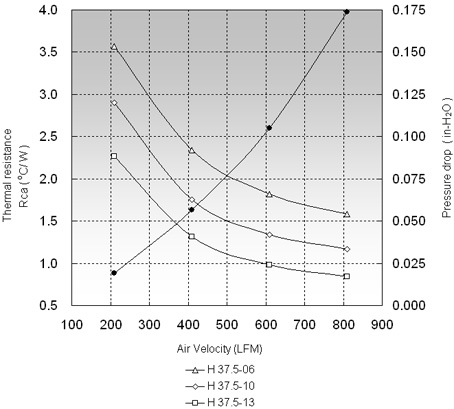

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
200(LFM) 400(LFM) 600(LFM)
H37.5-06 3.57 2.34 1.82
H37.5-10 2.90 1.75 1.34
H37.5-13 2.27 1.31 0.98

0.80 W/mK TIM
