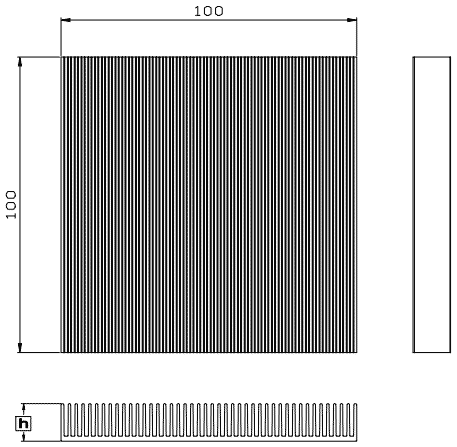

:: H :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD H 100-06 100 x 100  6.3  94.2 By request H 100-10 100 x 100  9.5  128.5 By request H 100-13 100 x 100  12.7  162.7 By request

Material : Aluminum 6063 Finish : Black anodize Remarks: : Model number H100-06 indicate 100x100mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

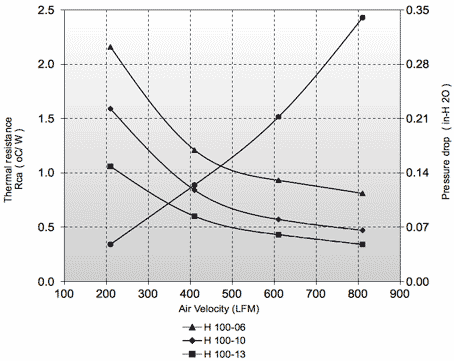

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) H 100-06 2.16  1.21 0.93 H 100-10  1.59  0.84  0.57 H 100-13  1.06 0.60  0.43
