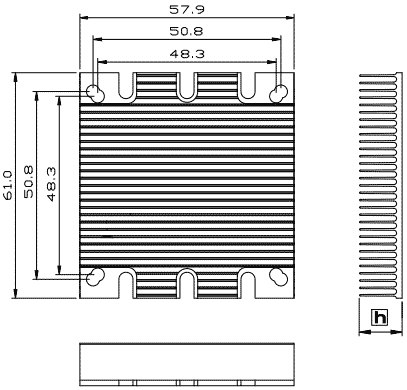

:: HC 5861 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
HC 5861-12 58 x 61 11.5  102 By request


hc5861

Material
: Copper 1100
Finish
: Anti-Oxidation
Remarks
:
Model number HC 5861-12 indicate 58x61mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

:: Rth ( oC/W ) ::
MP5861
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
HC 5861-12  1.93 1.42  1.23
