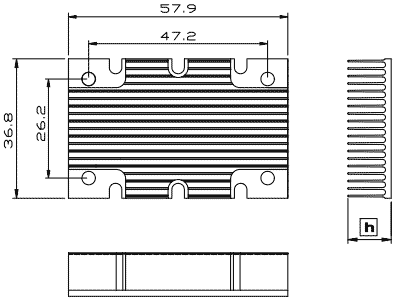

:: HC 5837 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
HC 5837-12 58 x 37 11.5 59 By request


hc5837

Material
: Copper 1100
Finish
: Anti-Oxidation
Remarks
:
Model number HC 5837-12 indicate 58x37mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

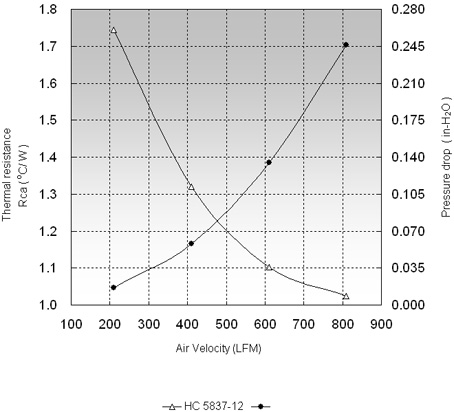

:: Rth ( oC/W ) ::
MP5837
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
HC 5837-12  1.74 1.32 1.10
