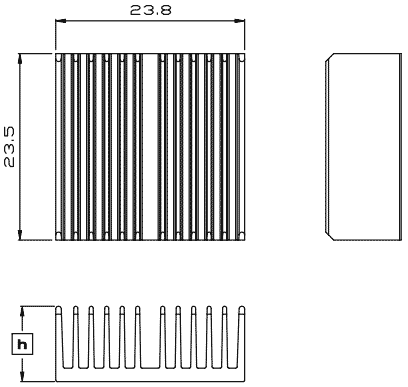

:: HC 24 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
HC 24-06 24 x 24 6.3 14.7 By request
HC 24-10 24 x 24 9.5 18.9 By request


Material
: Copper 1100
Finish
: Anti-Oxidation
Remarks
:
Model number HC 24-06 indicate 24x24mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

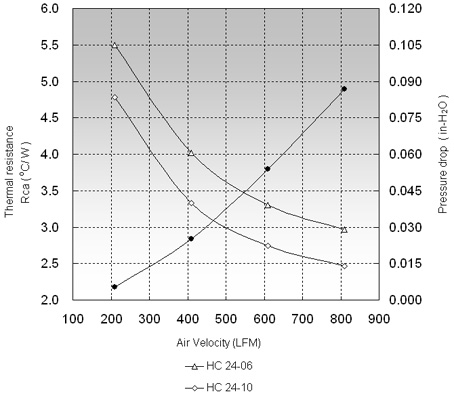

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
HC 24-06 5.50 4.02 3.30
HC 24-10 4.78 3.33 2.74
