EX31

:: EX31 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
EX 31-10 31 x 31 9.8 10.0 By request



Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:

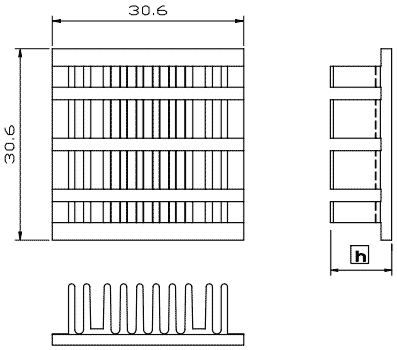

Model number EX31-10 indicate 31x31mm is package footprint and 10 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimensionn


:: Rth ( oC/W ) ::
  Air Velocity / Rth ( oC/W )
  200(LFM) 400(LFM) 600(LFM)
  200(LFM) 400(LFM) 600(LFM)
EX 31-10 6.48 5.15 4.30
