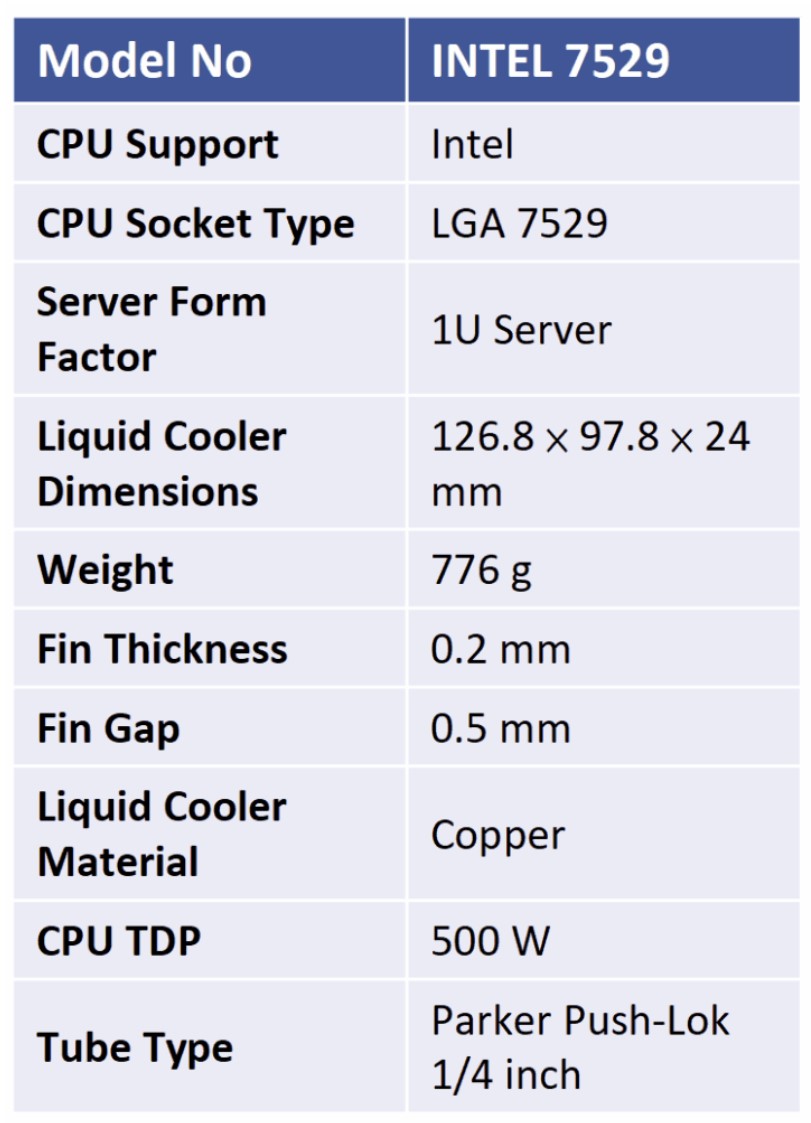

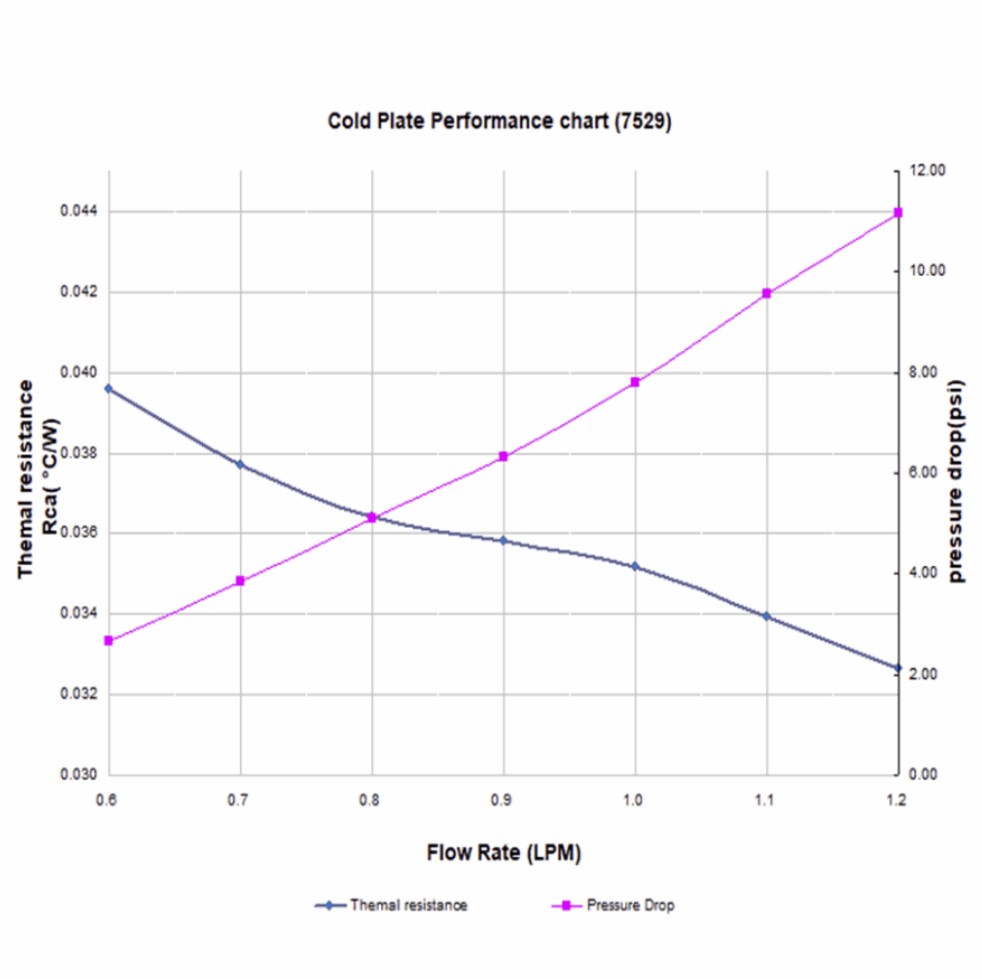

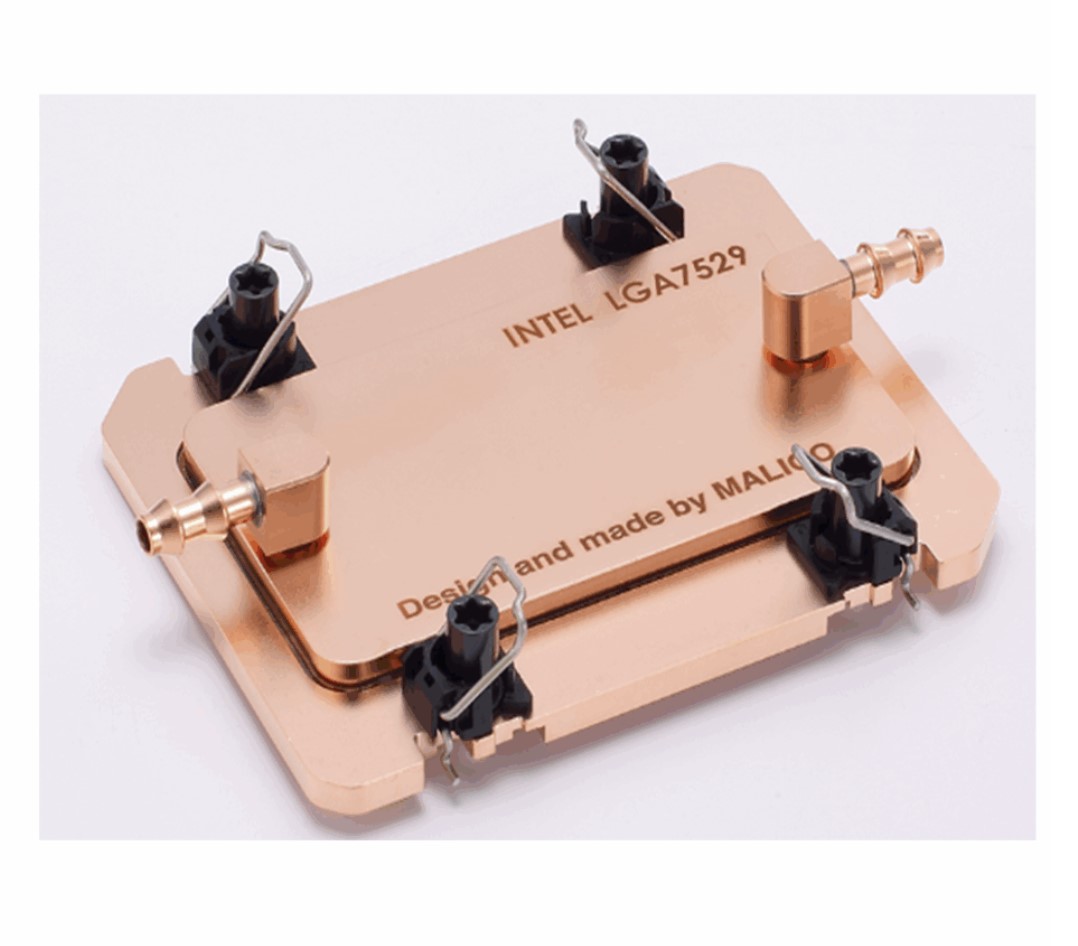

Intel 7529 – Performance & Specifications

Intel 7529 – Assembly Guide

Assembly Guide

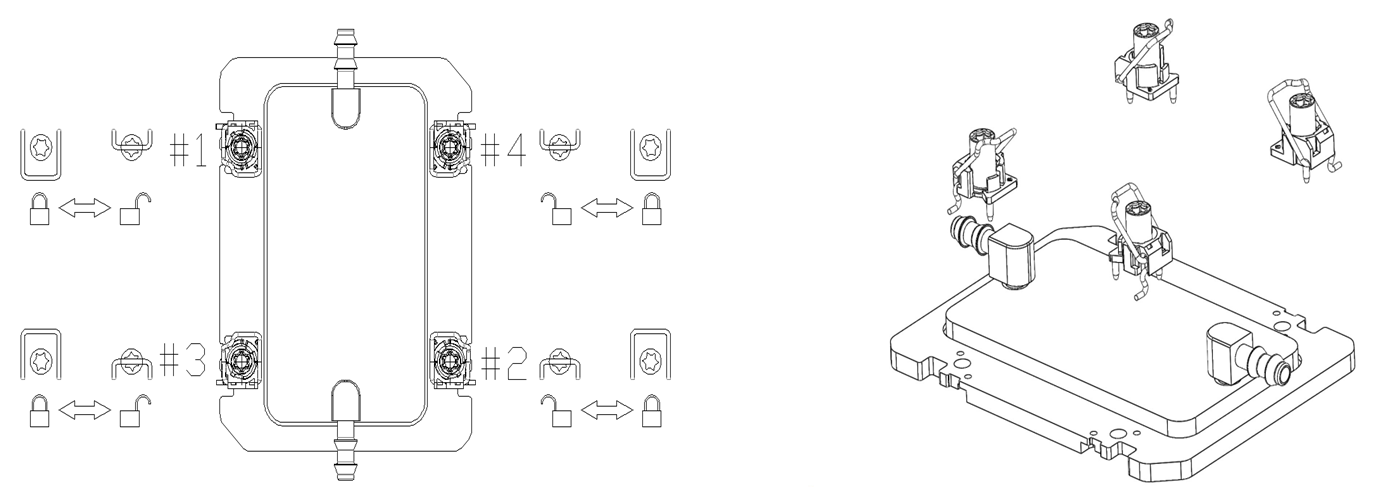

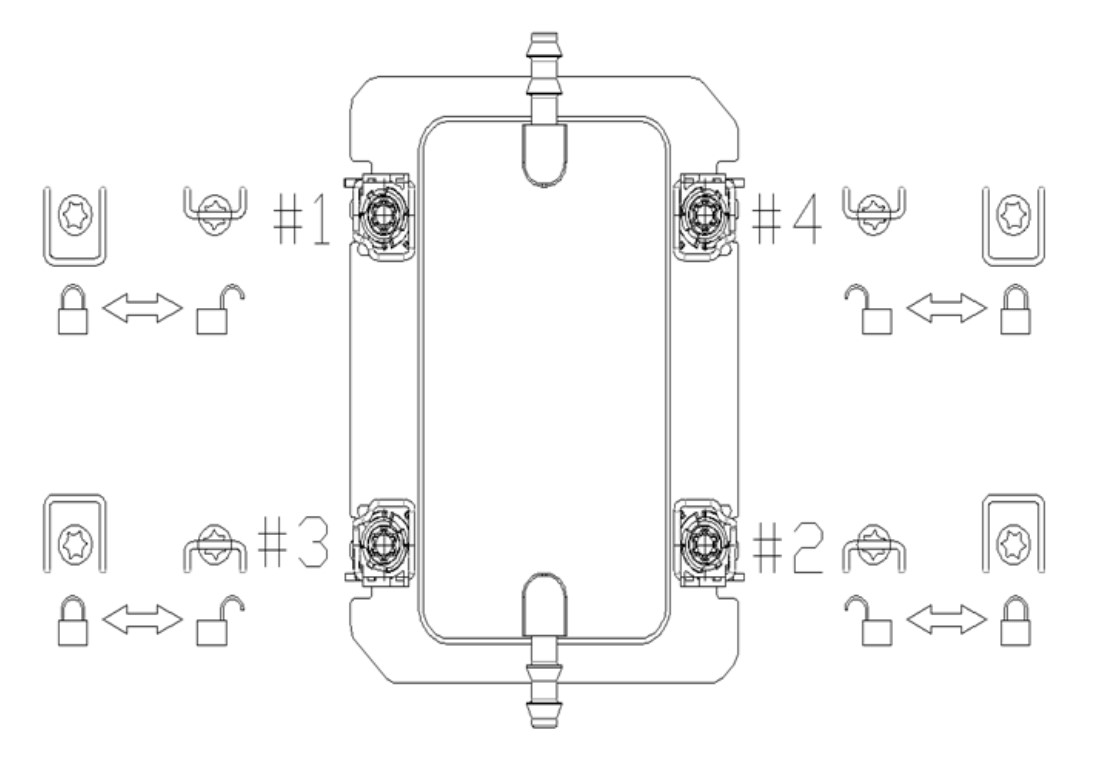

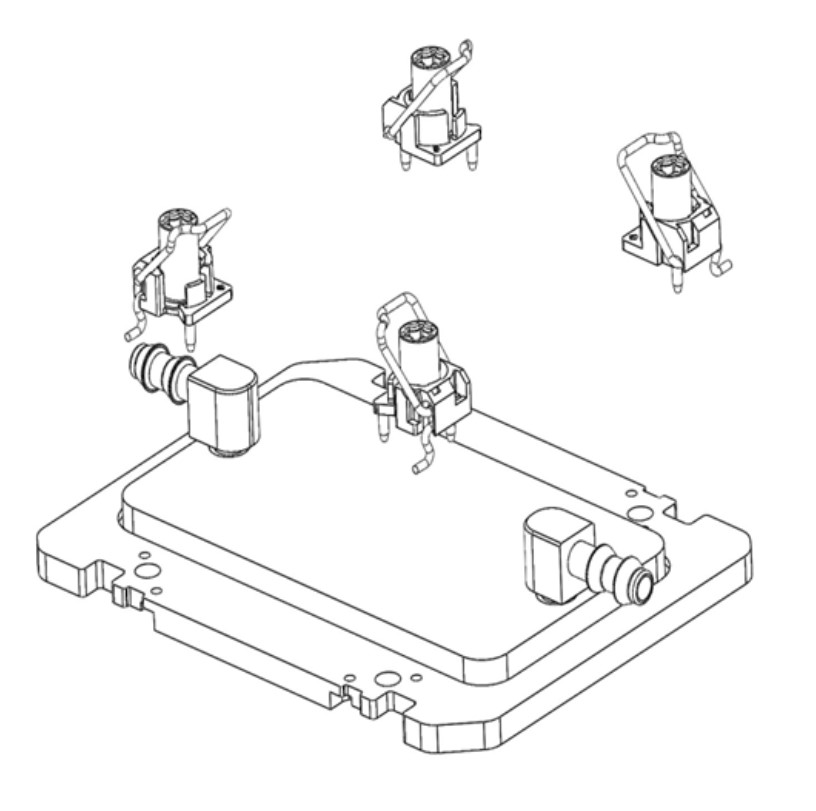

1.Before installing the Processor Heat Sink Module onto the bolster plate, refer to the sticker instructions to ensure all wires are in the unlocked position.

2.Mount the Processor Heat Sink Module on the bolster plate and move all wires to the locked position.

3.Using a screwdriver with a Torx T30 bit, set the torque to 9.2 kgf-cm (8 lbf-in).

4.Ensure that all heat sink mounting screws remain perfectly vertical during installation.

5.Tighten the two diagonal screws (#1 and #2) fully, one at a time. Then repeat the process for the remaining two diagonal mounting screws.
