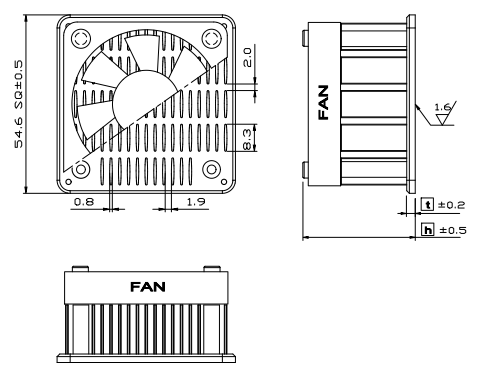

MWF55 – Malico Inc. :: MWF55 :: Dimension Model No. Height (mm) Thickness (mm) Weight (grams) Rth ( oC/W ) CAD Attachment MWF55-24 23.6 2.6 43.1 1.65 By request Clip , Tape MWF55-27 26.6 2.6 44.8 1.46 By request Clip , Tape MWF55-30 29.6 2.6 46.5 1.33 By request Clip , Tape MWF55-33 32.6 2.6 48.2 1.28 By request Clip , Tape MWF55-35 34.6 2.6 49.3 1.26 By request Clip , Tape MWF55-40 39.6 2.6 52.1 1.23 By request Clip , Tape MWF55-45 44.6 2.6 54.9 1.19 By request Clip , Tape Dimensions: mm Material : AL6063 Finish :black anodize :: Fan :: Dimension Bearing Voltage (VDC) Speed (RPM) Air Flow (CFM) Noise (dBA) 50 x 50 x 10mm VAPO 12V 5500 13.8 31 Remarks: 1) Standard wire length 300mm. 2) Connector Molex 2695-3P or equivalent
