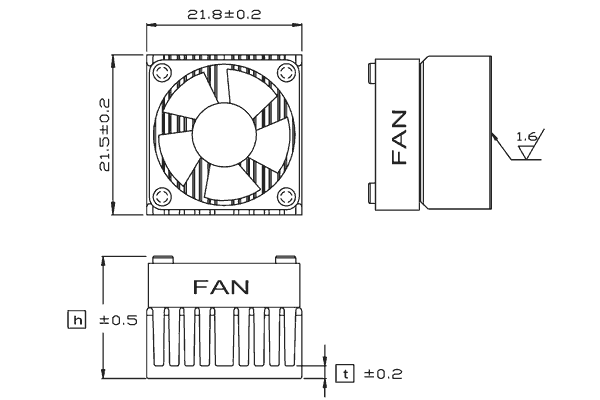

:: HF22 :: Dimension

Model No.	Height (mm)	Thickness (mm)	Weight (grams)	Rth ( ^oC/W )	CAD	Attachment
HF22-16	16	1.7	10.2	3.18	By request	Clip , Tape
HF22-19	19	1.7	11.3	3.02	By request	Clip , Tape
HF22-22	22	1.7	12.5	2.73	By request	Clip , Tape

Dimensions: mm Material : AL6063 Finish :black anodize

:: Fan ::

Dimension	Bearing	Voltage (VDC)	Speed (RPM)	Air Flow (CFM)	Noise (dBA)
20x20x8mm	VAPO	5V	12000	1.3	21

Remarks:
1) Standard wire length 300mm.
2) Connector Molex 2695-3P or equivalent
