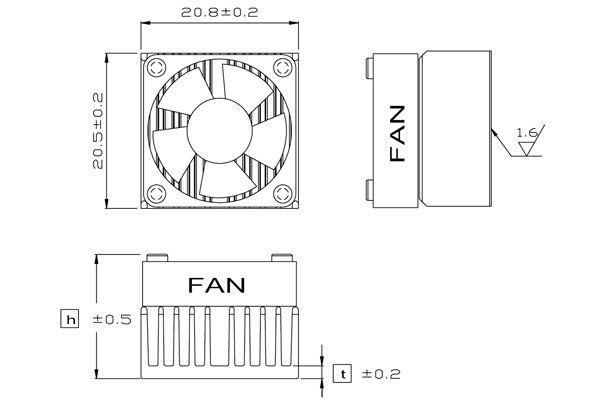

:: HF21 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) Rth ( oC/W ) CAD Attachment
HF21-16 16 1.7 9.5 3.45 By request Clip , Tape
HF21-19 19 1.7 10.6 3.23 By request Clip , Tape
HF21-22 22 1.7 11.7 2.89 By request Clip , Tape

Dimensions: mm Material : AL6063 Finish :black anodize

:: Fan ::
Dimension Bearing Voltage (VDC) Speed (RPM) Air Flow (CFM) Noise (dBA)
20x20x8mm VAPO 5V 12000 1.3 21
Remarks:
1) Standard wire length 150mm.
2) Connector Molex 2695-3P or equivalent
