:: MPCA16 :: Dimension

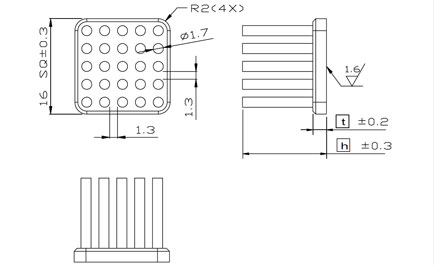

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment MPCA 16-11 11.3 2.3 10.6 By request Clip , Tape MPCA 16-14 14.3 2.3 12.1 By request Clip , Tape MPCA 16-17 17.3 2.3 13.6 By request Clip , Tape MPCA 16-20 20.3 2.3 15.1 By request Clip , Tape MPCA 16-22 22.3 2.3 16.2 By request Clip , Tape MPCA 16-27 27.3 2.3 18.7 By request Clip , Tape MPCA 16-32 32.3 2.3 21.2 By request Clip , Tape

Material : Copper 1100 Finish : Anti-Oxidation Remarks : Model number MPCA16-11 indicate 16x16mm is package footprint and 11 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

:: Rth ( oC/W ) ::

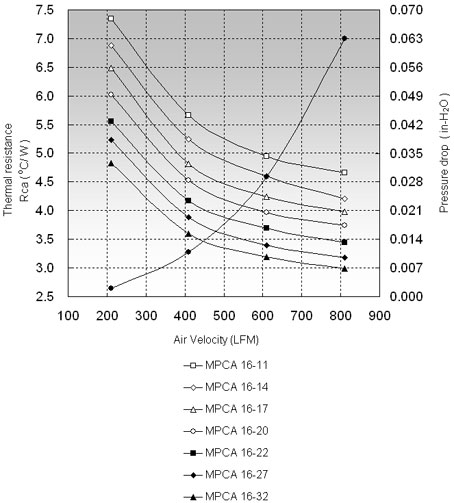

	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MPCA 16-11 7.35 5.66 4.94 MPCA 16-14 6.88 5.24 4.60 MPCA 16-17 6.48 4.82 4.24 MPCA 16-20 6.02 4.53 3.96 MPCA 16-22 5.56 4.17 3.69 MPCA 16-27 5.23 3.88 3.40 MPCA 16-32 4.83 3.60 3.20
