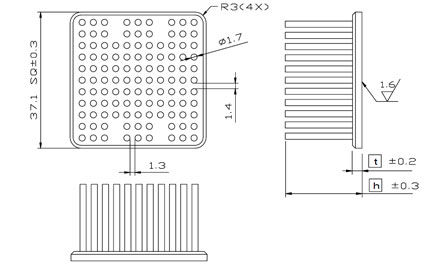

:: MPA37.5 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
MPA 37.5-12 11.6 2.6 18.8 By request Clip , Tape
MPA 37.5-15 14.6 2.6 21.0 By request Clip , Tape
MPA 37.5-18 17.6 2.6 23.1 By request Clip , Tape
MPA 37.5-21 20.6 2.6 25.2 By request Clip , Tape
MPA 37.5-23 22.6 2.6 26.6 By request Clip , Tape
MPA 37.5-28 27.6 2.6 30.1 By request Clip , Tape
MPA 37.5-33 32.6 2.6 33.6 By request Clip , Tape


Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:
Model number MPA37.5-12 indicate 37.5×37.5mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

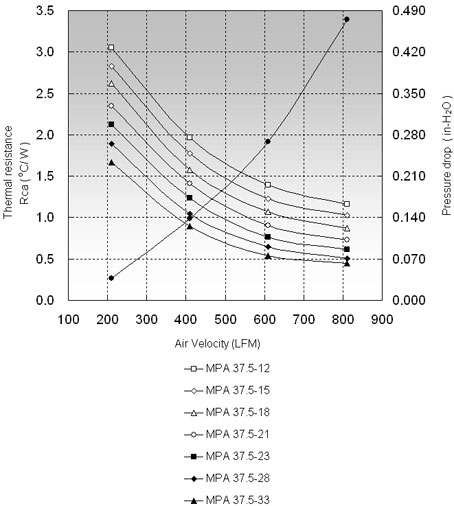

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MPA 37.5-12 3.29 1.90 1.39
MPA 37.5-15 2.99 1.70 1.23
MPA 37.5-18 2.77 1.56 1.07
MPA 37.5-21 2.54 1.36 0.90
MPA 37.5-23 2.33 1.19 0.76
MPA 37.5-28 2.07 1.01 0.64
MPA 37.5-33 1.83 0.84 0.54
