:: MLA14 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
MLA 14-11 10.7 1.7 1.7 By request Clip , Tape
MLA 14-14 13.7 1.7 2.0 By request Clip , Tape
MLA 14-17 16.7 1.7 2.2 By request Clip , Tape
MLA 14-20 19.7 1.7 2.5 By request Clip , Tape
MLA 14-22 21.7 1.7 2.7 By request Clip , Tape


Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:

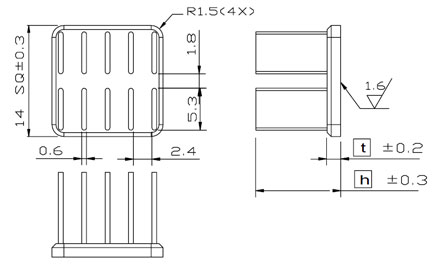

Model number MLA14-11 indicate 14x14mm is package footprint and 11 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

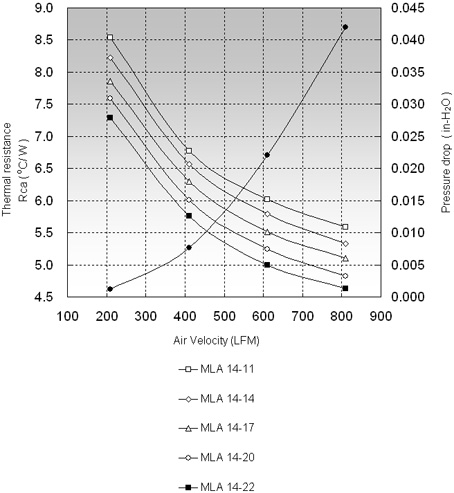

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MLA 14-11 8.54 6.77 6.02
MLA 14-14 8.22 6.57 5.79
MLA 14-17 7.86 6.30 5.51
MLA 14-20 7.59 6.01 5.24
MLA 14-22 7.29 5.76 5.00
