MLA13 – Malico Inc.

Home » Heat Sink with Talon Clip » MLA Series » MLA13 – Malico Inc.
:: MLA13 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
MLA 13-11 10.7 1.7 1.5 By request Clip , Tape
MLA 13-14 13.7 1.7 1.7 By request Clip , Tape
MLA 13-17 16.7 1.7 2.0 By request Clip , Tape
MLA 13-20 19.7 1.7 2.2 By request Clip , Tape
MLA 13-22 21.7 1.7 2.4 By request Clip , Tape


Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:

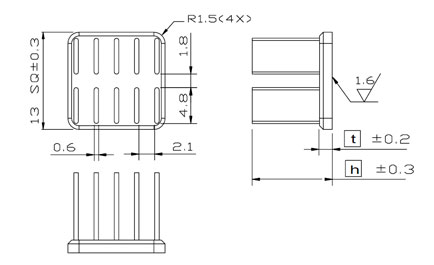

Model number MLA13-11 indicate 13x13mm is package footprint and 11 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MLA 13-11 8.83 6.95 6.17
MLA 13-14 8.50 6.73 5.96
MLA 13-17 8.16 6.47 5.75
MLA 13-20 7.81 6.20 5.45
MLA 13-22 7.46 5.92 5.20
