:: HCA 40 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
HCA 40-06 6.3 1.7 50.2 By request Clip , Tape
HCA 40-10 9.5 1.7 66.6 By request Clip , Tape

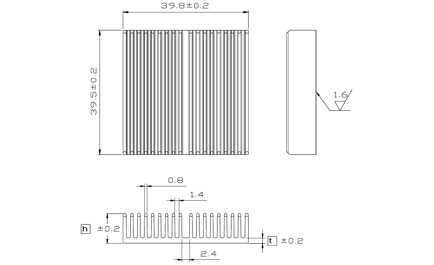

HCA40 d

Material
: Copper 1100
Finish
: Anti-Oxidation
Remarks
:
Model number HCA 40-06 indicate 40x40mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

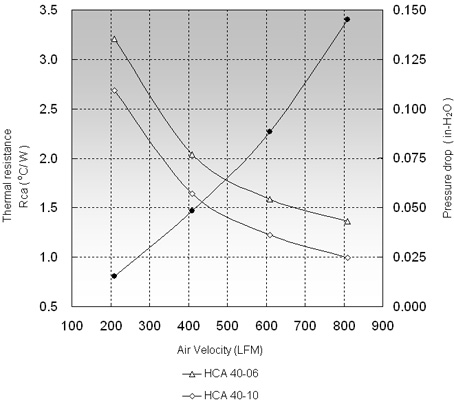

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
HCA 40-06 3.20 2.04 1.58
HCA 40-10 2.68 1.64 1.22
