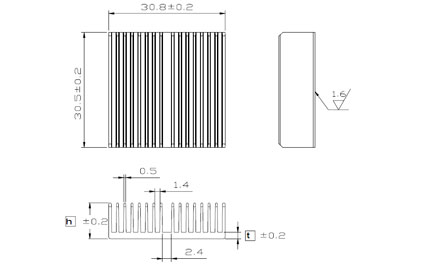

:: HCA 31 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
HCA 31-06 6.3 1.7 26.9 By request Clip , Tape
HCA 31-10 9.5 1.7 34.0 By request Clip , Tape


Material
: Copper 1100
Finish
: Anti-Oxidation
Remarks
:
Model number HCA 31-06 indicate 31x31mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

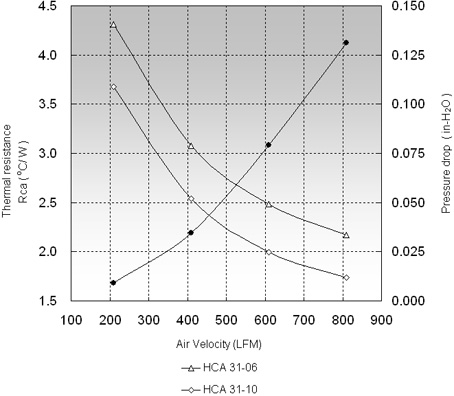

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
HCA 31-06 4.31 3.08 2.48
HCA 31-10 3.68 2.54 1.99
