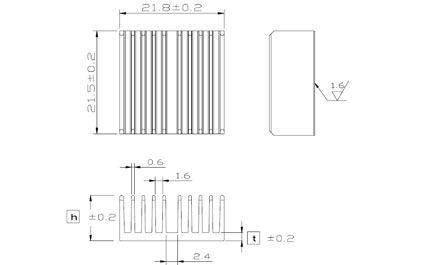

:: HCA 21 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
HCA 21-06 6.3 1.7 13.1 By request Clip , Tape
HCA 21-10 9.5 1.7 16.8 By request Clip , Tape


Material
: Copper 1100
Finish
: Anti-Oxidation
Remarks
:
Model number HCA 21-06 indicate 21x21mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

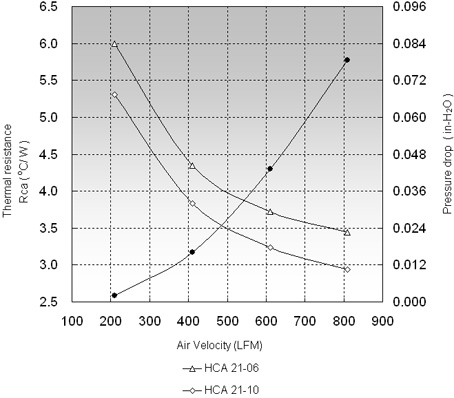

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
HCA 21-06 6.00 4.35 3.72
HCA 21-10 5.31 3.84 3.24
