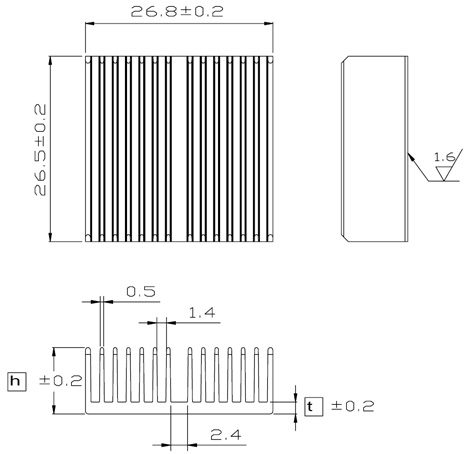

:: HA 27:: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
HA 27-06 6.3 1.7 7.8 By request Clip , Tape
HA 27-10 9.5 1.7 9.5 By request Clip , Tape
HA 27-13 12.7 1.7 11.2 By request Clip , Tape


Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:
Model number HA27-06 indicate 27x27mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

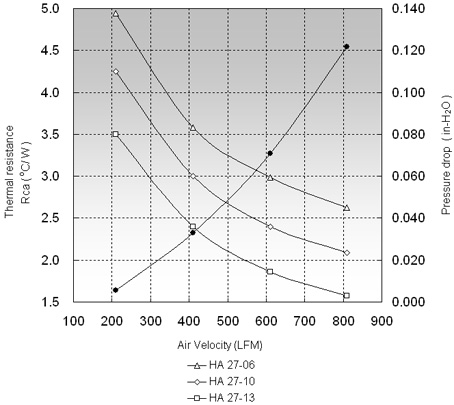

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
HA 27-06 4.94 3.58 2.99
HA 27-10 4.25 3.00 2.40
HA 27-13 3.50 2.40 1.86
