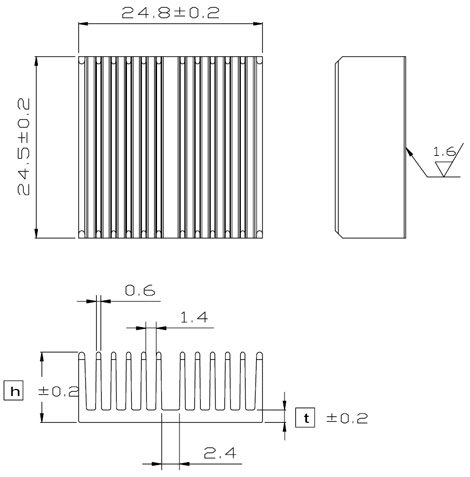

:: HA 25 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
HA 25-06 6.3 1.7 6.8 By request Clip , Tape
HA 25-10 9.5 1.7 8.4 By request Clip , Tape
HA 25-13 12.7 1.7 10.0 By request Clip , Tape


Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:
Model number HA25-06 indicate 25x25mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

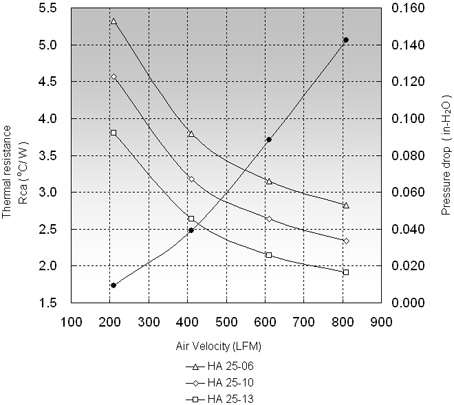

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
HA 25-06 5.32 3.79 3.15
HA 25-10 4.57 3.18 2.63
HA 25-13 3.80 2.64 2.15
