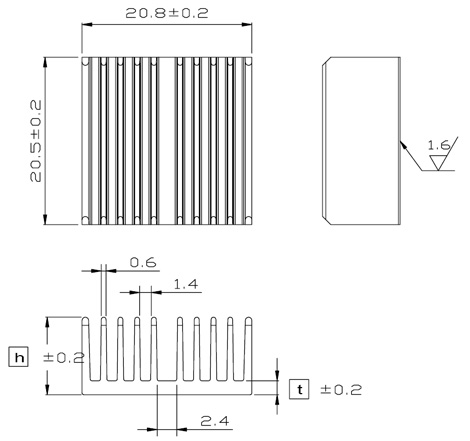

:: HA 21 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
HA 21-06 6.3 1.7 4.9 By request Clip , Tape
HA 21-10 9.5 1.7 6.0 By request Clip , Tape
HA 21-13 12.6 1.7 6.1 By request Clip , Tape


Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:
Model number HA21-06 indicate 21x21mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

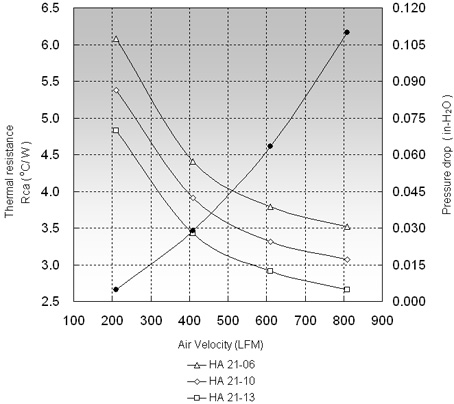

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
HA 21-06 6.08 4.41 3.79
HA 21-10 5.38 3.91 3.32
HA 21-13 4.83 3.43 2.91
