:: HA 19 :: Dimension

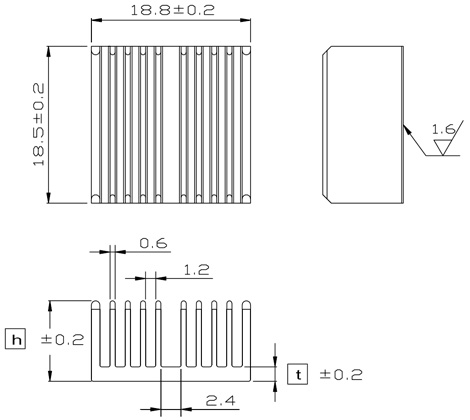

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
HA 19-06 6.3 1.7 4.6 By request Clip , Tape
HA 19-10 9.5 1.7 5.7 By request Clip , Tape
HA 19-13 16.7 1.7 6.8 By request Clip , Tape


Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:
Model number HA19-06 indicate 19x19mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

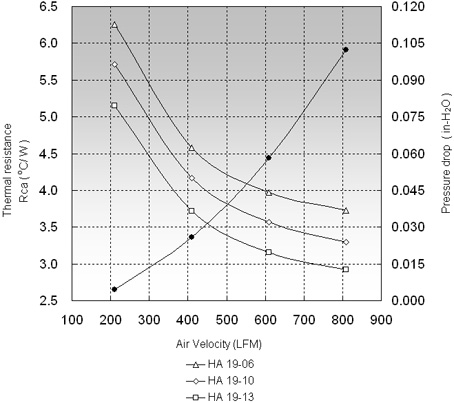

:: Rth ( oC/W )::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
HA 19-06 6.26 4.58 3.97
HA 19-10 5.71 4.17 3.57
HA 19-13 5.15 3.72 3.16
