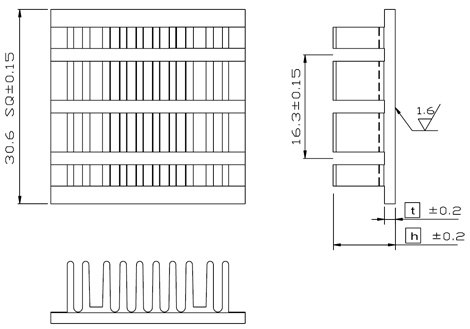

:: EXA31 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
EXA 31-10 9.8 1.7 14.4 By request Clip , Tape


Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:
Model number EXA31-10 indicate 31x31mm is package footprint and 10 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

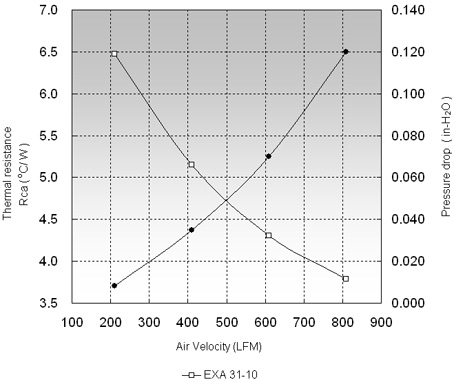

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
EXA 31-10 6.48 5.15 4.30
