EXA23 – Malico Inc.

Home » Heat Sink with Talon Clip » EXA Series » EXA23 – Malico Inc.

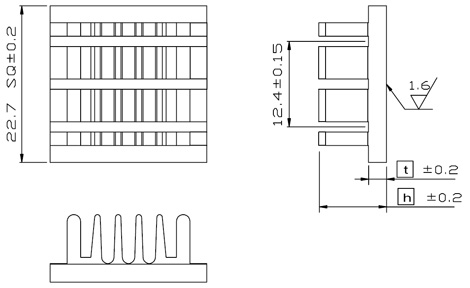

:: EXA23 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
EXA 23-10 9.8 2.6 8.6 By request Clip , Tape


Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:
Model number EXA23-10 indicate 23x23mm is package footprint and 10 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

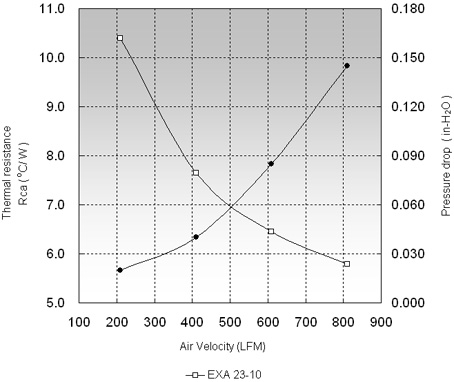

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
EXA 23-10 10.40 7.65 6.45
