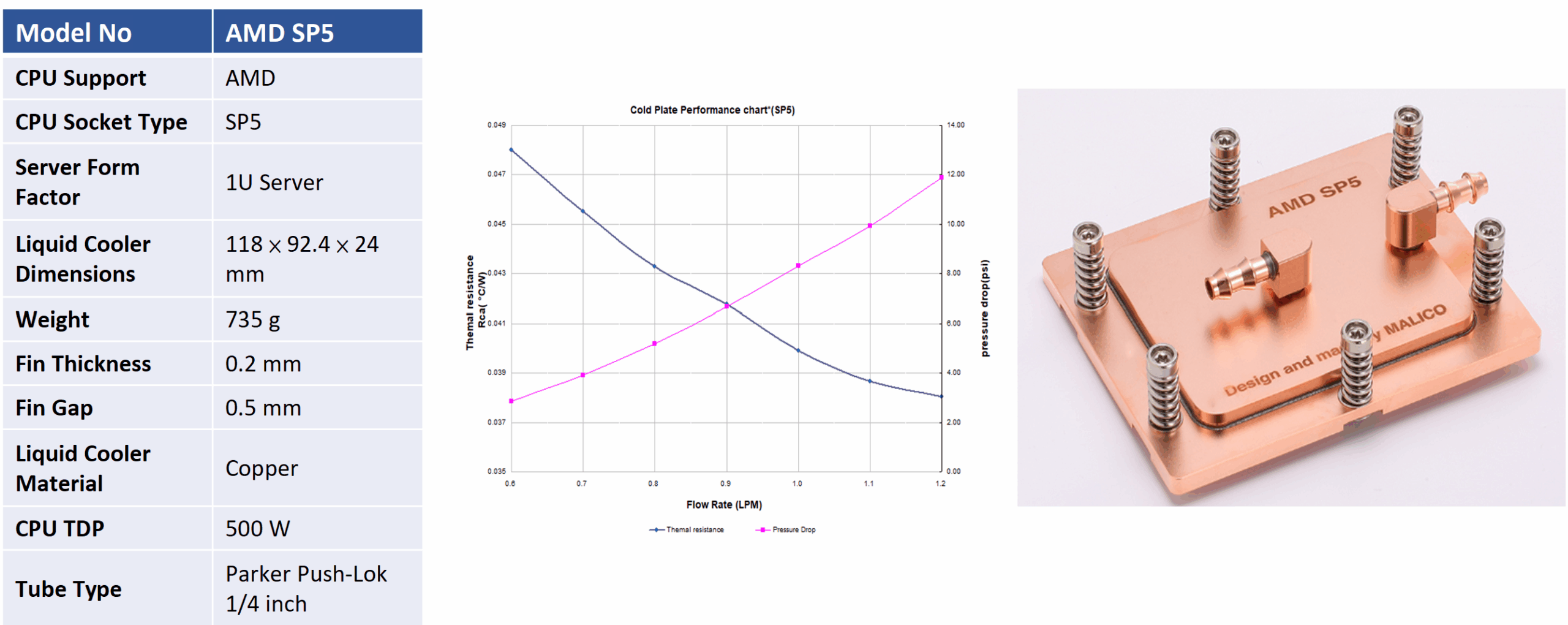

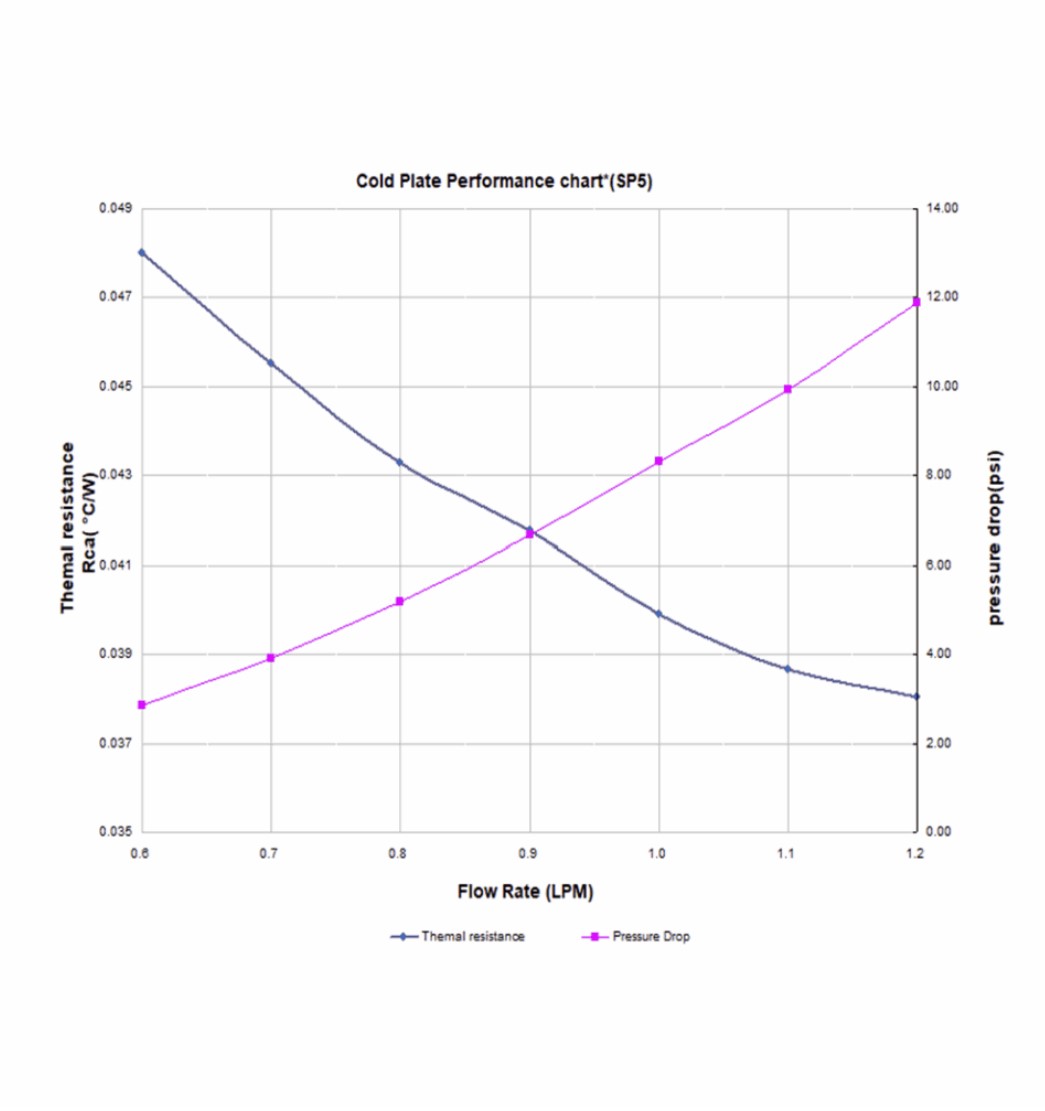

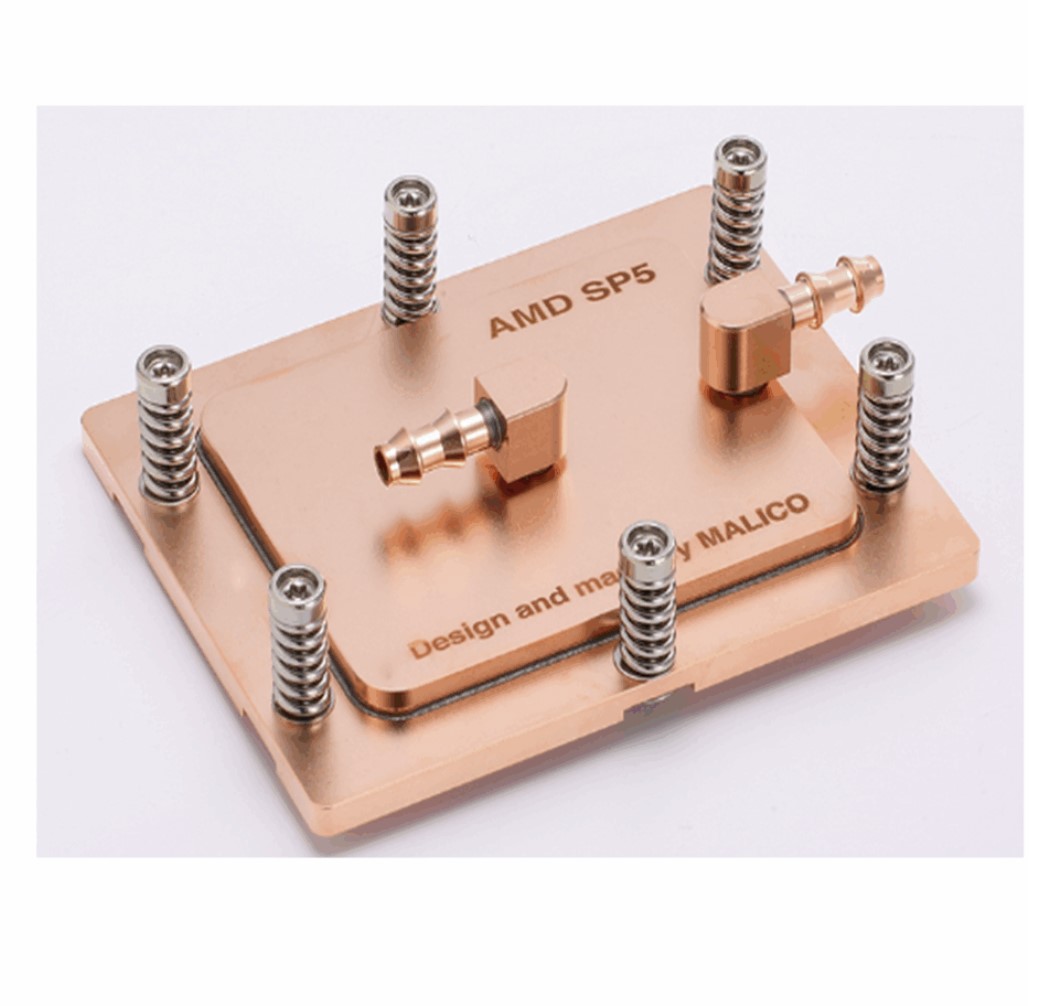

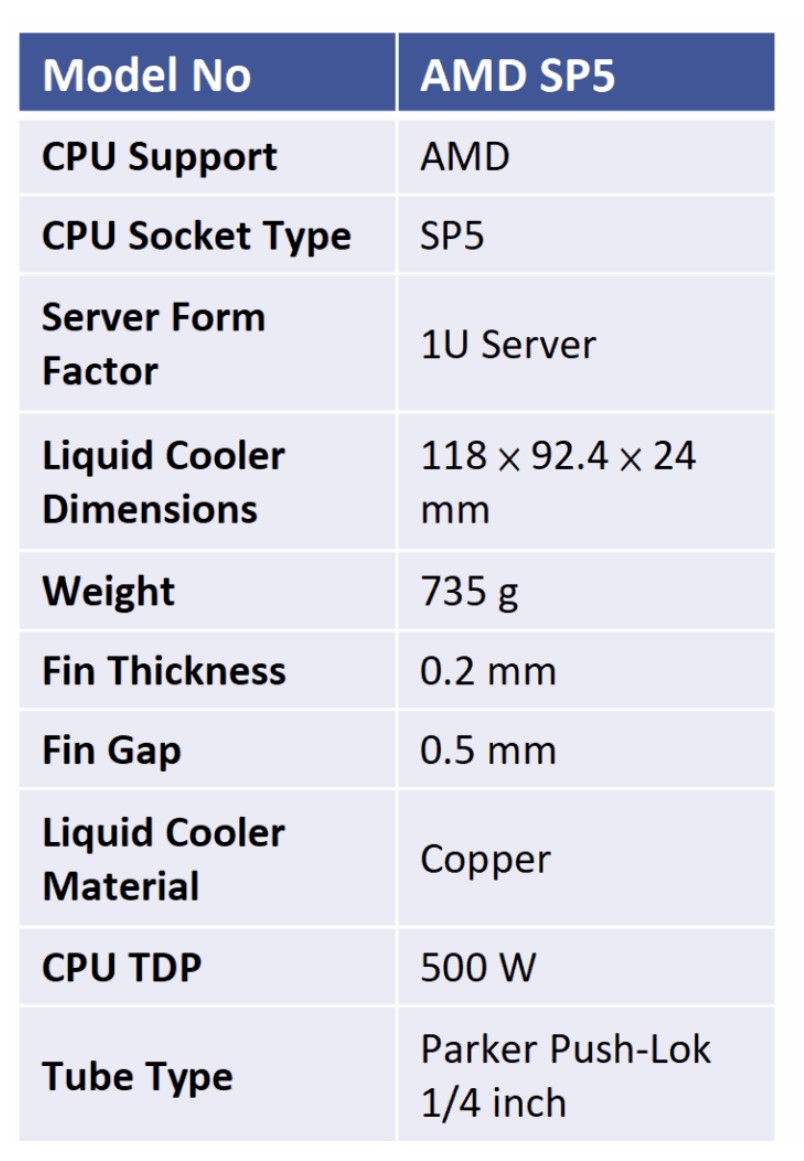

The AMD SP5 cold plate from Malico is engineered for high-performance liquid cooling in demanding datacenter and server environments. Designed to support AMD’s SP5 socket and 1U server form factor, this hard brazed copper cold plate features a precision-machined microchannel structure, 0.2 mm fin thickness, and a 0.5 mm fin gap—ensuring outstanding heat transfer for CPUs with thermal design power up to 500W. With compact dimensions (118×92.4×24 mm) and lightweight construction, the plate is compatible with Parker Push-Lok 1/4 inch tubing for easy integration into custom loops. Tested performance charts show consistently low thermal resistance and pressure drop across a wide flow range, making this cold plate an optimal solution for mission-critical applications that require reliable, efficient, and maintenance-friendly liquid cooling.

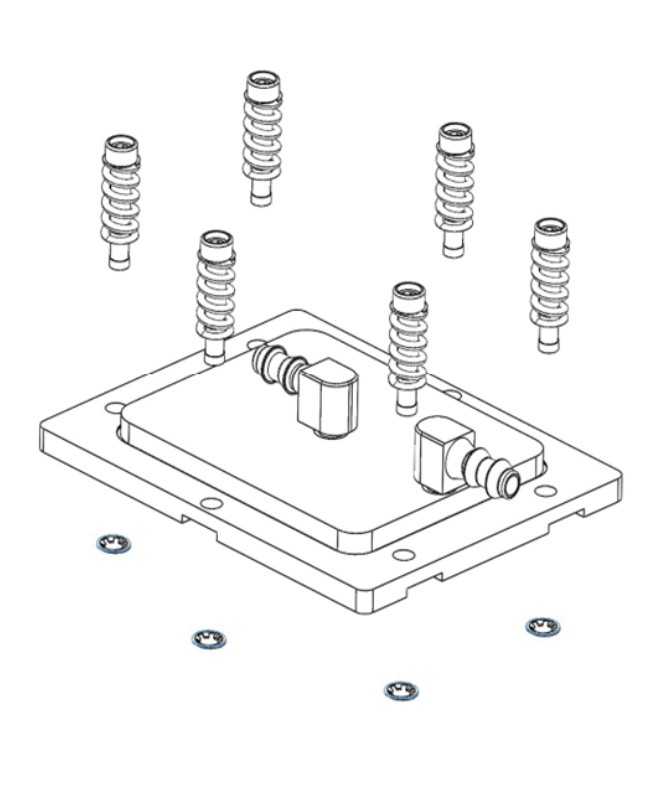

Assembly Guide

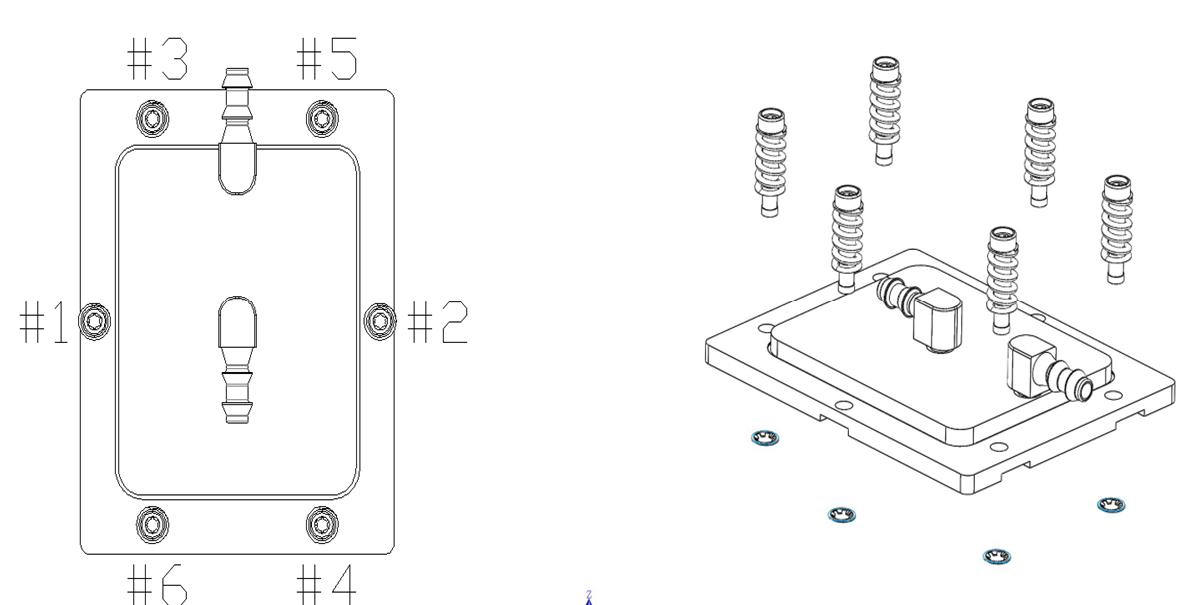

1. Use a screwdriver with a Torx T20 bit and set the torque to 12.5–15.0 kgf-cm (10.8–13.0 lbf-in).
2. Keep heat sink mounting screws vertical during installation.

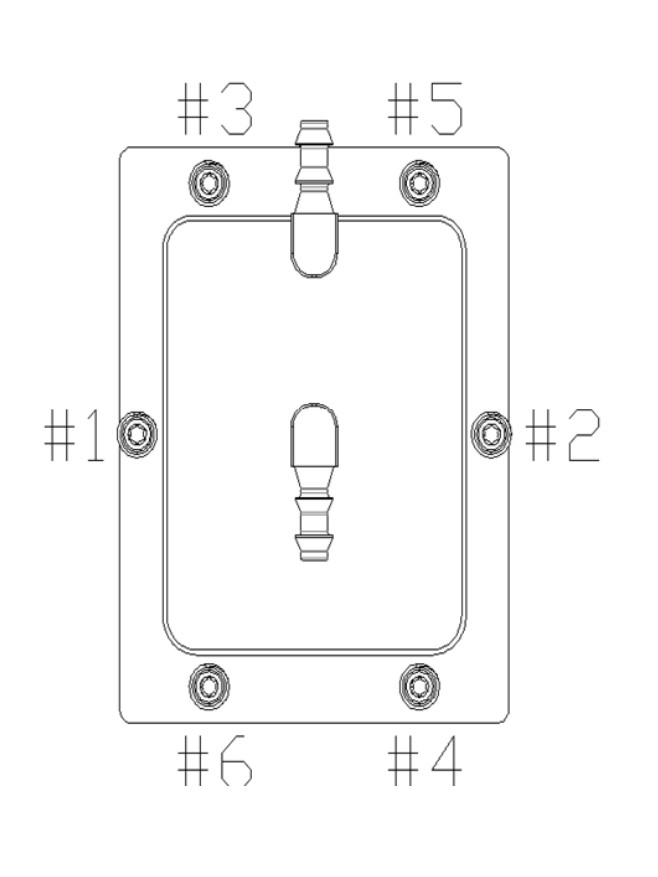

3. Tighten the two diagonal heat sink mounting screws (#1 and #2) completely, one at a time. Repeat the process for the remaining four diagonal heat sink mounting screws.
